FPM-7000T series monitors are the first, true-flat, 4:3, industrial-grade monitors. The 5-wire resistive touchscreen is enclosed in a highly durable, die cast aluminum alloy front bezel that provides IP66-rated protection from water and dust ingress. Additionally, the FPM-7000T series monitors support a wide operating temperature range (-20 ~ 60 °C/-4 ~ 140 °F) and various mount options to ensure easy installation and support for diverse environments.
- General Information
- Manufacturer
- Advantech Co., Ltd
- Manufacturer Website Address
- http://www.advantech.com
- Brand Name
- Advantech
- Product Series
- FPM-7000T
- Product Type
- LED Touchscreen Monitor
- Technical Information
- Screen Size Class
- 7"
- Viewable Screen Size
- 6.5"
- Screen Mode
- VGA
- Panel Technology
- Thin Film Transistor (TFT)
- Aspect Ratio
- 4:3
- Horizontal Viewing Angle
- 160°
- Vertical Viewing Angle
- 140°
- Mount Type
- Stand Mountable
- Wall Mountable
- Panel Mount
- Desk Mountable
- Arm-mountable
- Backlight Technology
- LED
- Features
- On-screen Display (OSD)
- Anti-glare
- Tempered Glass
- Ingress Protection (IP) Rating
- IP66
- Video
- Maximum Resolution
- 640 x 480
- Color Supported
- 16.2 Million Colors
- Native Contrast Ratio
- 600:1
- Brightness
- 800 Nit
- Touchscreen Information
- Touchscreen Type
- 5-wire Resistive

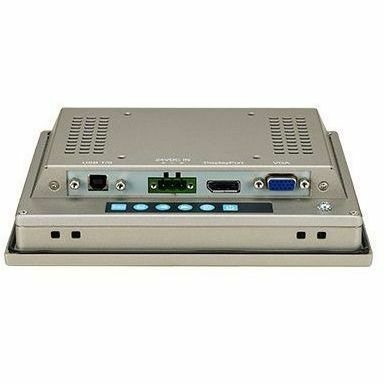

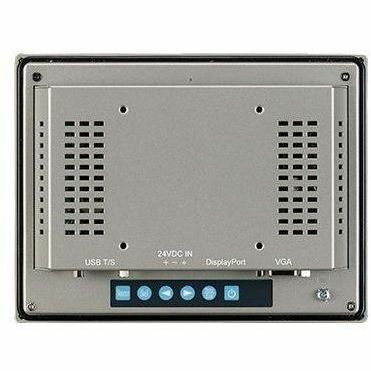

- Interfaces/Ports
- USB
- Yes
- DisplayPort
- Yes
- Environmental Conditions
- Operating Temperature Range
- -4°F (-20°C) to 140°F (60°C)
- Physical Characteristics
- VESA Mount Compatible
- Yes
- VESA Mount Standard
- 75 x 75
- Height
- 5.9"
- Width
- 7.8"
- Depth
- 1.8"
- Weight (Approximate)
- 2.65 lb
- Miscellaneous
- Package Contents
- FPM-7061T-R3AE Widescreen Touchscreen LED Monitor
- 6 x Clamper
- 6 x Clamper Screw
- 1 x USB Touch Cable
- 1 x RS232 Cable
- 1 x VGA Cable
- 1 x GND Cable
- 1 x Terminal Block
- Environmental Compliance
- China Restriction of Hazardous Substances (China RoHS)
