- General Information
- Manufacturer
- Schneider Electric SA
- Manufacturer Website Address
- http://www.schneider-electric.com
- Brand Name
- APC by Schneider Electric
- Product Line
- Back-UPS Pro
- Product Type
- Line-interactive UPS
Back-UPS Pro
High Performance Computer and Electronics UPS for Premium Power Protection
The Back-UPS Pro family offers guaranteed power protection for high performance computer systems, routers/modems, external storage devices, game consoles and other electronics in your home or business. These UPSs supply electronics with abundant battery backup during outages and stabilize unsafe voltage levels. They also provide power protection from damaging surges and spikes, and allow the use of management software so you get the most out of your UPS. Premium features of this family may include Automatic Voltage Regulation (AVR), an LCD display, Smart Outlets, energy saving functions that reduce electricity use, network manageability, Watchdog, or configurable outlets. Together with the rest of the Back-UPS Pro's standard features, they are the perfect choice to protect your data and keep your system available.
- Warranty
- Limited Warranty
- 3 Year
- Technical Information
- AVR
- Yes
- Plug/Connector Type
- NEMA 5-15P
- Receptacle Type
- NEMA 5-15R

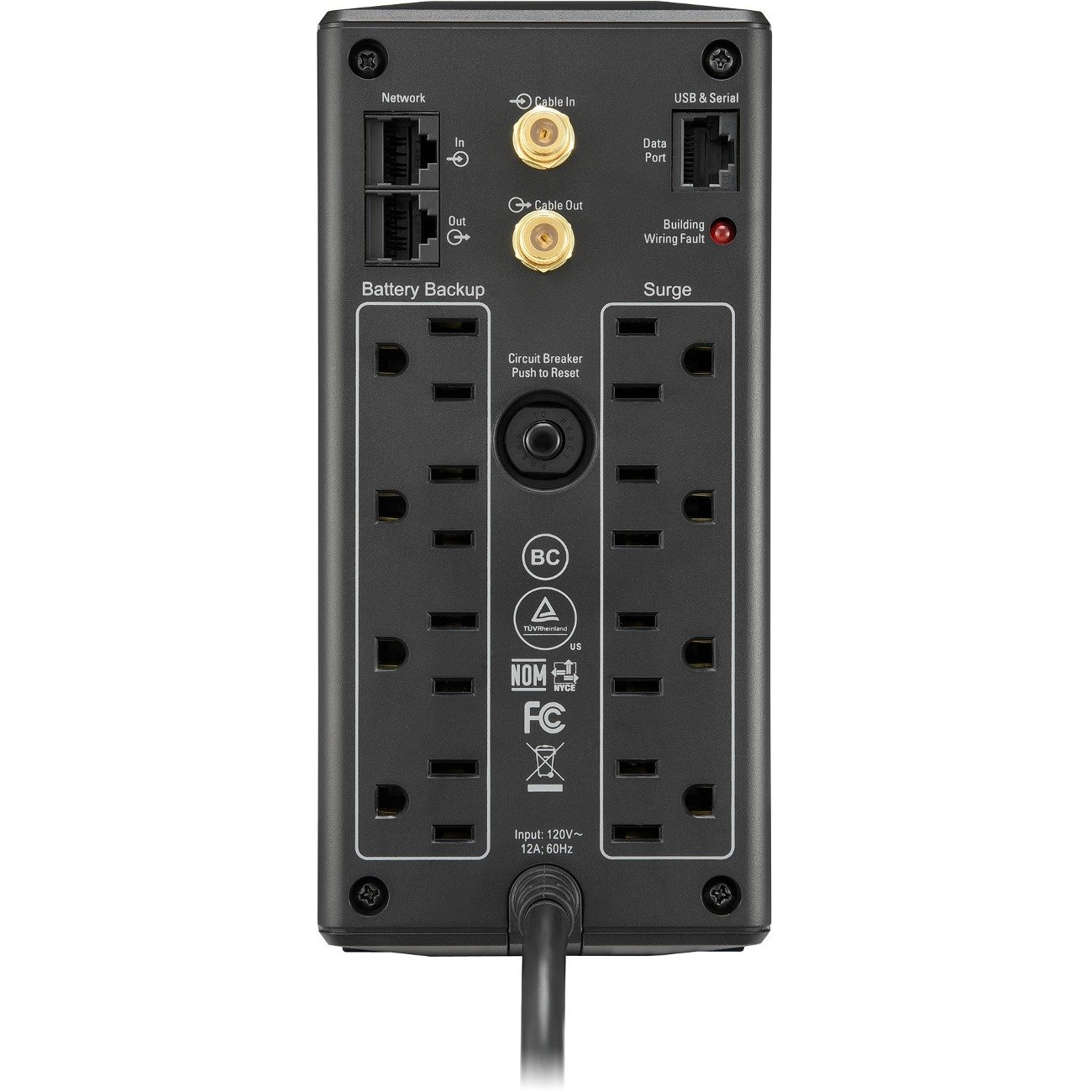

- Receptacle Detail
- 8 x NEMA 5-15R
- Number of Battery & Surge Outlets
- 8
- Dataline Protection
- Coax
- RJ-45
- Transfer Time
- 10 ms
- Application/Usage
- Home
- Office
- Gaming Console
- Computer System
- Network Device
- Router
- Modem
- Business
- Electronic Device
- Storage Device
- Network Equipment
- Critical Low-power Device
- Transformer
- Power Description
- Load Capacity (VA)
- 850 VA
- Load Capacity (Watt)
- 510 W
- Input Voltage
- 120 V AC
- Input Voltage Range
- 88 V AC - 139 V AC
- Output Voltage
- 120 V AC
- Input Frequency
- 60 Hz
- Output Frequency
- 60 Hz
- Waveform Type
- Stepped Sine Wave
- Surge Energy Rating
- 1103 J
- Management
- Alarm
- On Battery
- Low Battery
- Overload
- Controls/Indicators
- Status Indicators
Multi-function LCD
- Interfaces/Ports
- Serial Port
- Yes
- Network (RJ-45)
- Yes
- USB (HID Compliant) Port
- Yes
- Battery Information
- Number of Batteries
- 1
- Battery Characteristics
- Maintenance-free, Sealed, Leak-proof
- Battery Chemistry
- Lead Acid
- Backup/Run Time (Full Load)
- 2 Minute
- Backup/Run Time (Half Load)
- 8.90 Minute
- Typical Battery Recharge Time
- 12 Hour
- Hot Swappable
- Yes
- Replaceable Battery
- Yes
- Environmental Conditions
- Maximum Operating Temperature
- 104°F (40°C)
- Storage Temperature
- 5°F (-15°C) - 113°F (45°C)
- Maximum Operating Elevation
- 10000 ft
- Maximum Storage Elevation
- 10000 ft
- Operating Humidity
- 0% - 95%
- Storage Relative Humidity
- 0% - 95%
- Sound Emission (A-Weighted)
- 45 dB(A)
- Thermal Dissipation
- 14.21 W
- Physical Characteristics
- Color Family
- Black
- Product Color
- Black
- Height
- 7.5"
- Width
- 3.6"
- Depth
- 12.2"
- Form Factor
- Tower
- Weight (Approximate)
- 14.99 lb
- Miscellaneous
- Package Contents

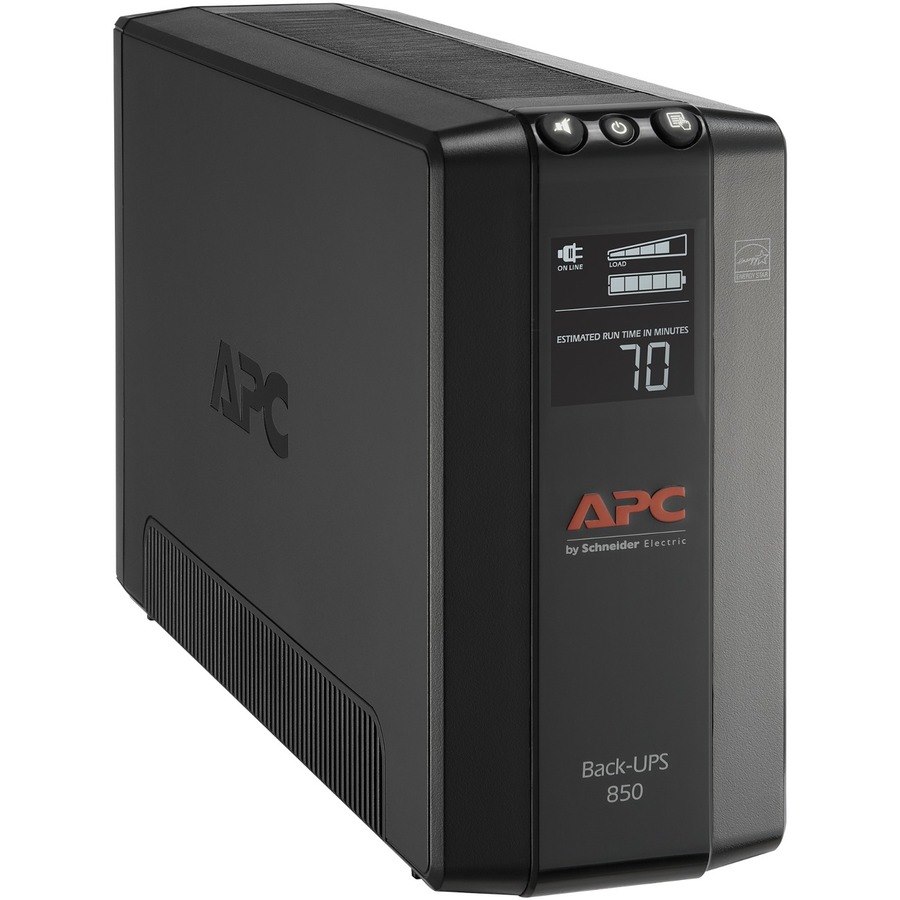

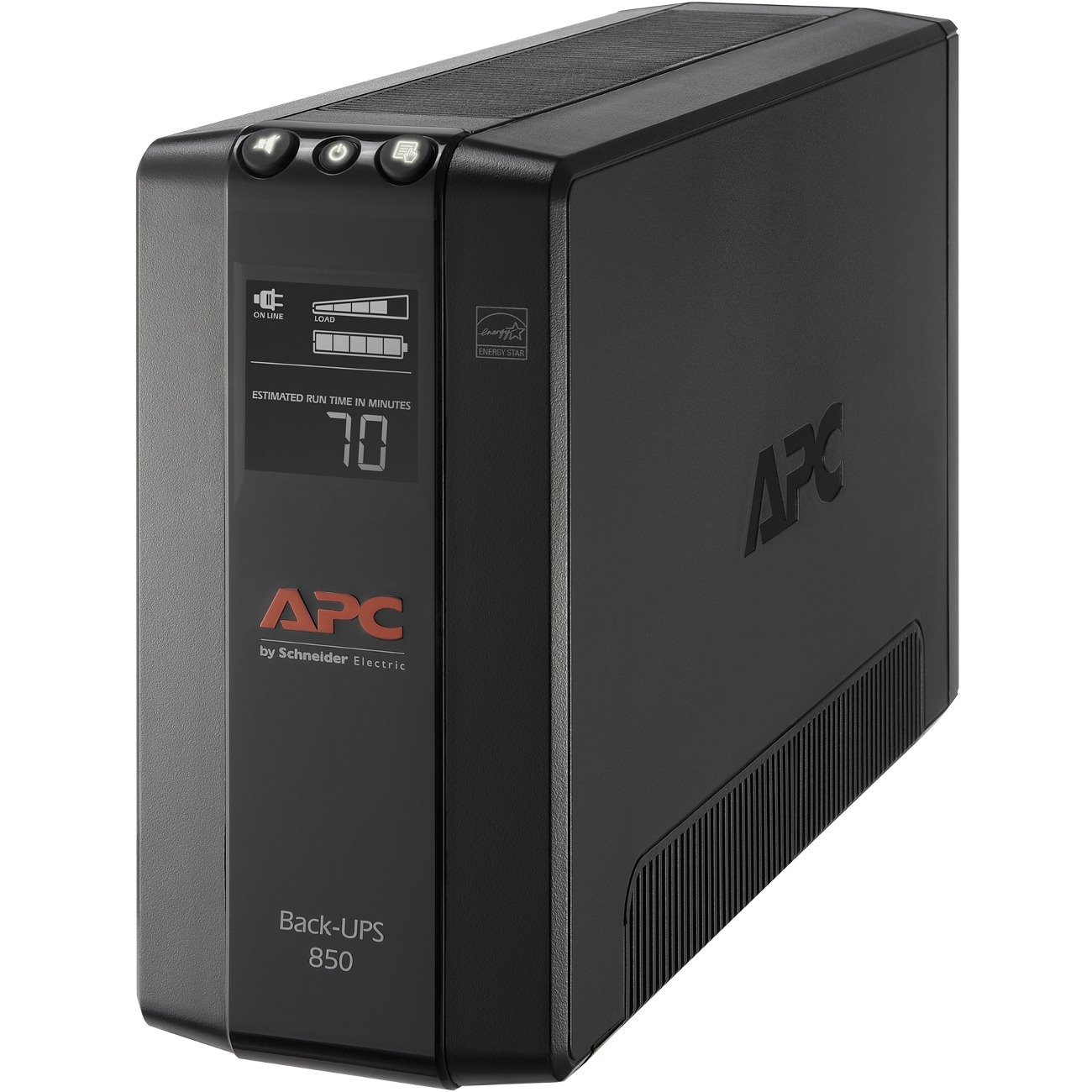

- Back-UPS Pro BX850M-LM60 850VA Tower UPS
- USB cable
- User manual
- Software Included
- PowerChute Personal Edition
- Environmentally Friendly
- Yes
- Environmental Compliance
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
