- General Information
- Manufacturer
- Schneider Electric SA
- Manufacturer Website Address
- http://www.schneider-electric.com
- Brand Name
- APC by Schneider Electric
- Product Line

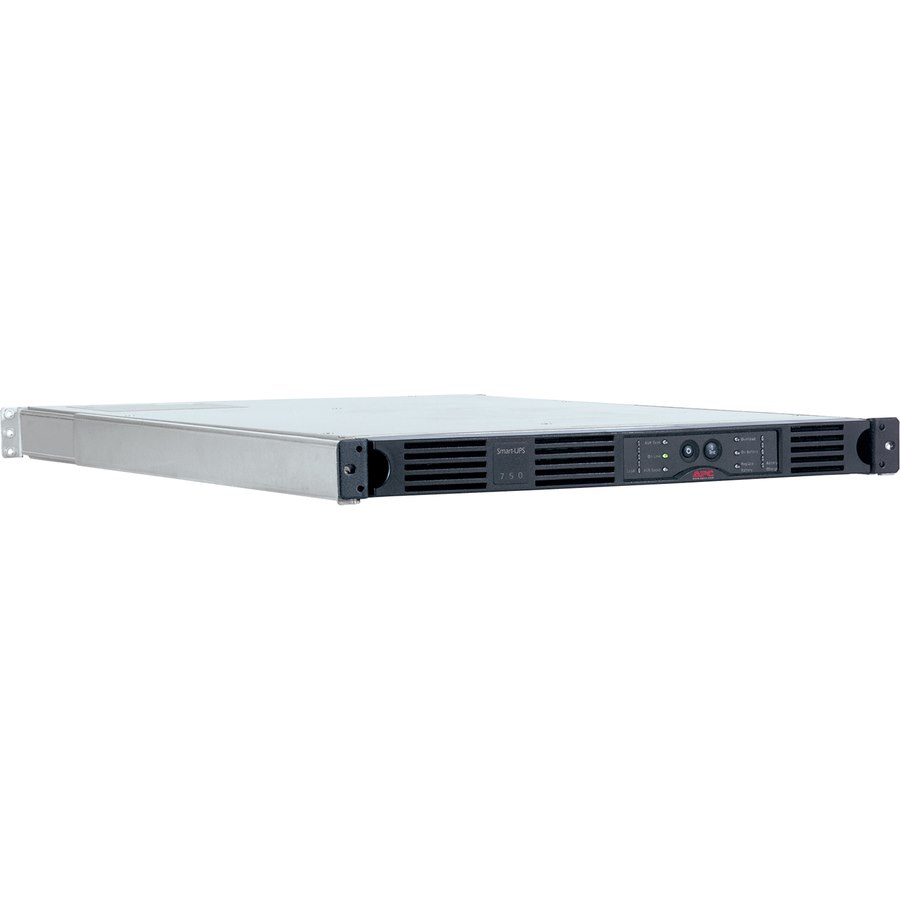

- Smart-UPS
- Product Type
- Line-interactive UPS
Marketing Information from the Manufacturer
- Warranty
- Limited Warranty
- 2 Year
- Additional Warranty Information
- 2 years repair or replace
- Directly Connected Equipment Guarantee
- $150000 Lifetime
- Technical Information
- Plug/Connector Type
- NEMA 5-15P
- Receptacle Type
- NEMA 5-15P
- Receptacle Detail
- 4 x NEMA 5-15R
- Number of Battery & Surge Outlets
- 4
- Emergency Power OFF
- Optional
- Cord Length
- 8 ft
- Power Description
- Load Capacity (VA)
- 750 VA
- Input Voltage
- 120 V
- Output Voltage
- 120 V AC
- Power Consumption
- 480 W
- Waveform Type
- Sine Wave
- Surge Energy Rating
- 480 J
- Management
- Alarm
- On Battery
- Low Battery
- Battery Management
- Intelligent Battery Management
- Controls/Indicators
- Status Indicators
- LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : and Overload Indicators
- Interfaces/Ports
- Serial Port
- Yes
- USB
- Yes
- Total Number of Expansion Slots
- 1
- Battery Information
- Battery Characteristics
- Maintenance-free
- Battery Chemistry
- Lead Acid
- Backup/Run Time (Full Load)
- 7.10 Minute
- Backup/Run Time (Half Load)
- 23.60 Minute
- Typical Battery Recharge Time
- 2 Hour
- Hot Swappable
- Yes
- Environmental Conditions
- Maximum Operating Temperature
- 113°F (45°C)
- Sound Emission (A-Weighted)
- 45 dB(A)
- Thermal Dissipation
- 38.10 W
- Physical Characteristics
- Color Family
- Black
- Product Color
- Black
- Height
- 1.7"
- Width
- 17"
- Depth
- 26"
- Rack Height
- 1U
- Form Factor
- Rack-mountable
- Mounting Preference
- Lower
- Mounting Location
- Front
- Weight (Approximate)
- 48.10 lb
- Miscellaneous
- Package Contents
- Smart-UPS 750VA
- CD with software
- Rack mounting brackets
- Rack mounting support rails
- Smart UPS signalling RS-232 cable
- USB cable
- User manual
- Additional Information
- Automatic Self Test
- Automatic Voltage Regulation (AVR)
- Building wiring fault indicator
- Load Meter
- Network-grade line conditioning
- Overload Indicator
- Replace Batt Indicator
- Software
- User Replaceable batteries
- Wide input voltage range
- Certifications & Standards
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Green Premium
- Yes
- Optimized Energy Efficiency
- Yes
- Product Take Back Program
- Yes
- Mercury Free
- Yes
- RoHS Exemption Information
- https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SUA750RM1U_ROHS_DECLARATION&p_FileName=SUA750RM1UKIT_ROHS_DECLARATION_US.pdf
- REACH Declaration URL
- https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=765556&lang=en-us
- EU RoHS Declaration URL
- https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=765556&lang=en-us
- Environmental Profile Availability
- https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1612028_EN
- End of Life Manual Availability
- https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1612028_EN
- California Proposition 65 Warning
- "WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov"
- REACH free of SVHC
- No
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
