- General Information
- Manufacturer
- Axis Communications
- Manufacturer Website Address
- http://www.axis.com
- Brand Name
- AXIS
- Product Type
- Video Decoder

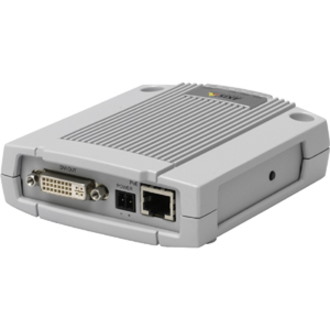

The AXIS P7701 Video Decoder provides a simple monitoring solution by enabling analog or digital monitors/projectors to connect to and display live video from Axis network cameras and video encoders. In situations where only live video display is required such as with a public view monitor at a store entrance, AXIS P7701 offers a more cost-effective solution than using a PC for connecting a monitor. AXIS P7701 can also complement a video management system by helping to offload the main server from decoding digital streams simply for display purposes.
- Technical Information
- Functions
- Video Decoding
- Video Capturing
- Video Compression
- Maximum Resolution
- 1280 x 720
- Maximum Frame Rate
- 30 fps
- Video Formats
- H.264
- MPEG-4
- MJPEG
- Interfaces/Ports
- Audio Line Out
- Yes
- Composite Video
- Yes
- Number of Composite Video Outputs
- 1
- DVI
- Yes
- Number of DVI Outputs
- 1
- Physical Characteristics
- Form Factor
- External
- Height
- 1.3"
- Width
- 3.9"
- Depth
- 4.6"
- Weight (Approximate)
- 0.70 lb
- Miscellaneous
- Additional Information
Supported Protocol(s):
- IPv4/v6
- HTTP
- HTTPS
- FTP
- SMTP
- Bonjour
- UPnP
- SNMPv1/v2c/v3(MIB-II)
- DNS
- DynDNS
- NTP
- RTSP
- RTP
- TCP
- UDP
- IGMP
- RTCP
- ICMP
- DHCP
- ARP
- SSL/TLS
