- General Information
- Manufacturer
- Axis Communications
- Manufacturer Website Address
- http://www.axis.com
- Brand Name
- AXIS
- Product Series
- Q36
- Product Type
- Network Camera
Designed for wide and long-distance surveillance, this high-performance positioning camera features a 1/2" sensor with 31x optical zoom for outstanding image quality every time. Plus, built-in intelligent analytics alert you when needed.
Outstanding image quality every where

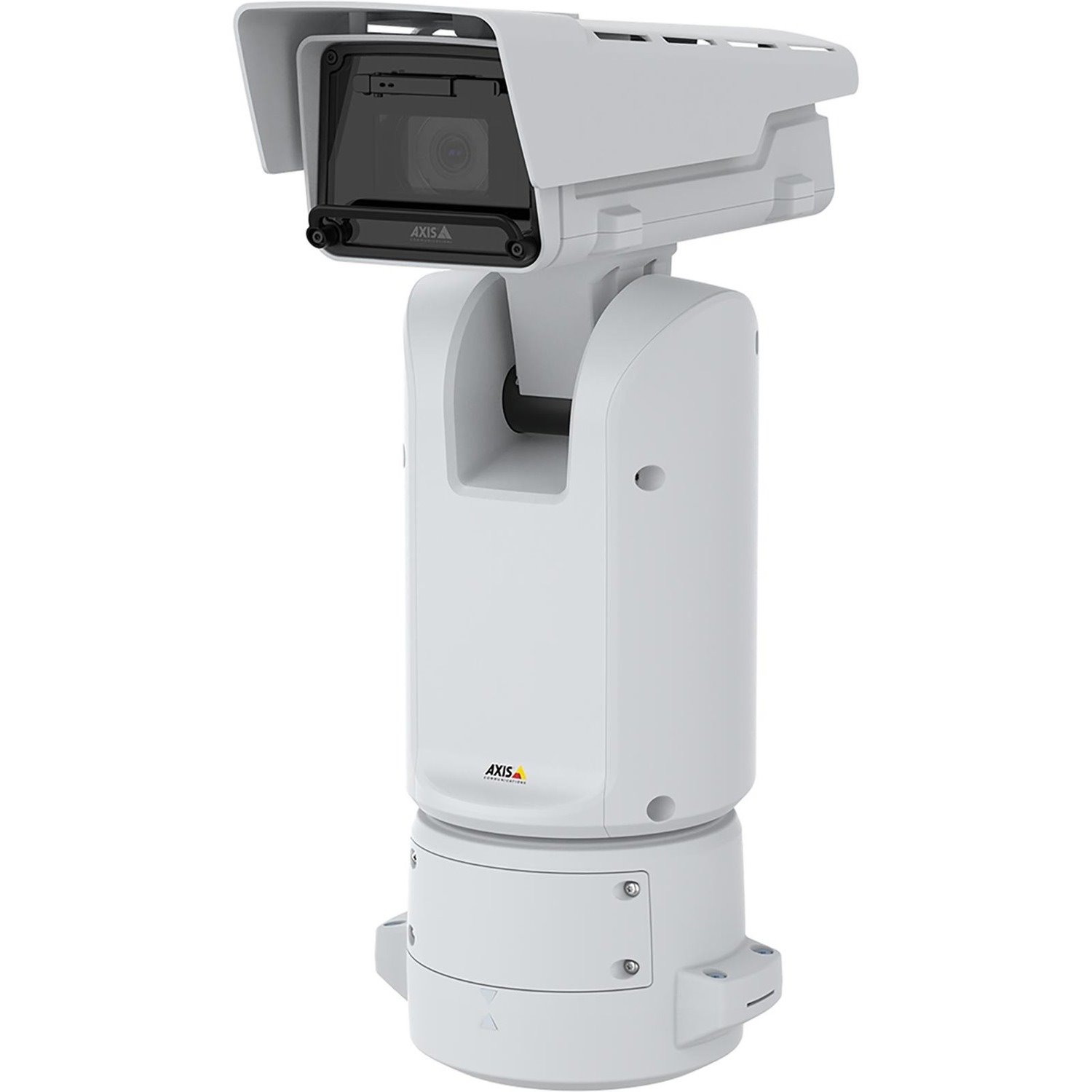

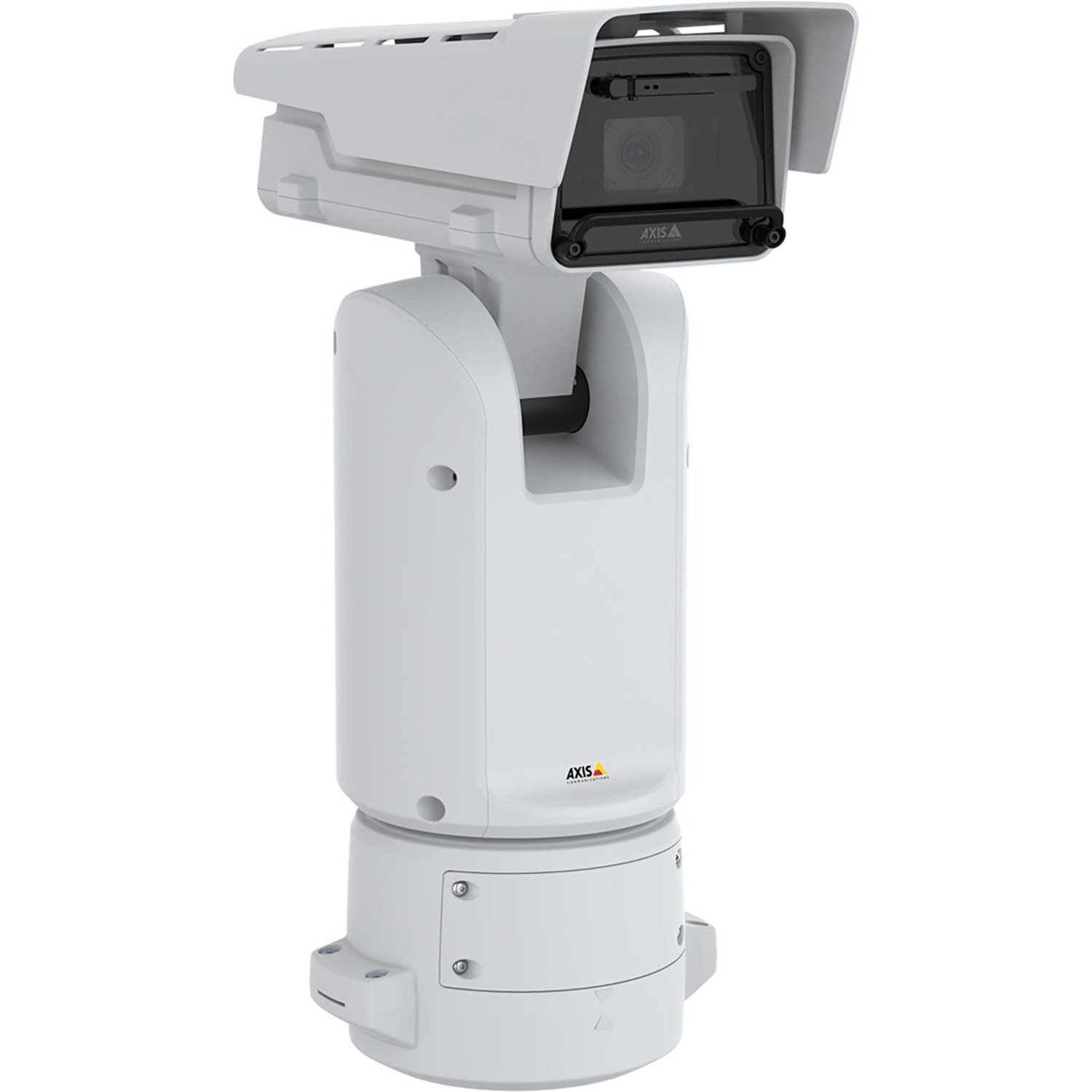

Featuring HDTV 1080p resolution with 31x optical zoom, AXIS Q8615-E delivers outstanding image quality. Ideal for both wide and long-distance surveillance, this positioning camera can be column-mounted, on poles or walls for a continuous, unobstructed 360° panoramic view and a ground-to-sky view from -90° to +45°. Including a very light-sensitive 1/2" inch sensor, Forensic WDR, and Lightfinder it ensures sharp, clear images even in extreme low-light conditions. Axis Zipstream with H.264/ H.265 significantly reduces bandwidth and storage requirements. Plus, IR is available as an optional accessory so you can capture images even in complete darkness.
Intelligent protection
This high-performance positioning camera comes with AXIS Guard Suite analytics for detecting motion, intrusion, and loitering. It also offers autotracking functionality. And active gatekeeper automatically moves the camera to a preset position when motion is detected in a pre-defined area. Thanks to Axis Object Analytics it can detect and classify people and vehicles- all tailored to specific needs. Plus, it offers built-in cybersecurity features to prevent unauthorized access and safeguard your system. Furthermore, it includes a Trusted Platform Module (TPM) that is FIPS 140-2 level 2 certified.
Flexible and cost-effective
AXIS Q8615-E offers flexible cable management for efficient installation. And you can install it anywhere you want- on columns, poles, walls, and corners. Thanks to a SFP slot, it supports long-distance fiber connection. This also helps limit potential points of failure in your system. Furthermore, an integrated, long-life silicone wiper ensures cost-effective maintenance from remote locations.
- Technical Information
- Recording Formats
- Full HD
- HD Recording
- Yes
- Display & Graphics
- Image Sensor Type
- CMOS
- Color Supported
- Color
- Field of View
- Horizontal field of view 60.6 - 2.0 ° , Vertical field of view 36.5 - 1.1 °
- Effective Camera Resolution
- 2 Megapixel
- Video
- Video Formats
- Zipstream
- H.264 (MP)
- H.264 BP
- H.264 HP
- Motion JPEG
- H.265/H.264 (MPEG-4 Part 10/AVC)
- H.265 (MPEG-H Part 2/HEVC)
- Maximum Video Resolution
- 1920 x 1080
- Maximum Frame Rate
- 60 fps
- Lens
- Lens Type
- Varifocal
- Minimum Focal Length
- 6.91 mm
- Maximum Focal Length
- 214.64 mm
- Lens Included
- Yes
- Minimum Aperture
- f/4.6
- Maximum Aperture
- f/1.36
- Optical Zoom
- 31.1x
- Exposure
- Shortest Shutter Speed
- 1/111000 Second
- Longest Shutter Speed
- 1/2 Second
- Network & Communication
- Connectivity Technology
- Wired
- Remote Management
- Yes
- Storage
- Storage Type
- Memory Card
- Interfaces/Ports
- Network (RJ-45)
- Yes
- Power Description
- Input Voltage
- 28 V DC
- 28 V AC
- Power Source Type
- AC
- DC
- Physical Characteristics
- Durability
- Vandal Resistant
- Color Family
- White
- Product Color
- White
- Weight (Approximate)
- 31.75 lb
- Environmental Conditions
- Minimum Operating Temperature
- -58°F (-50°C)
- Maximum Operating Temperature
- 131°F (55°C)
- Maximum Operating Humidity
- 100%
- Miscellaneous
- Features
- Wide Dynamic Range
- Day/Night
- Motion Detection
- HTTPS Encryption
- Password Protection
- SD Card Local Storage
- Privacy Masking
- Defog
- White Balance
- Indoor/Outdoor
- Outdoor
- Impact Protection Rating
- IK10
- Ingress Protection Rating
- IP66
