- General Information
- Manufacturer
- Cisco Systems, Inc
- Manufacturer Website Address
- http://www.cisco.com
- Brand Name
- Cisco
- Product Type
- Expansion Module

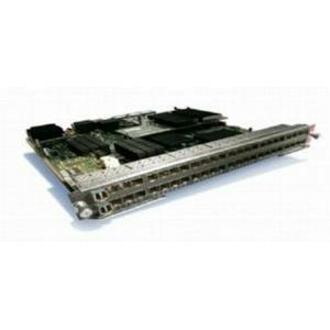

Catalyst 6500 series mixed media/fiber-based gigabit Ethernet interface modules are used in distribution and core layers, data-center and Metro Ethernet applications. This gigabit Ethernet interface module deliver wire-speed switched connectivity and support several switch fabric connections and traffic forwarding options. With a range of port densities and modular physical layer interfaces, this module also offer a choice of packet buffer depths for traffic shaping, and QoS granularity with varying number of queues and drop threshold options.
- Warranty
- Limited Warranty
- 90 Day
- Technical Information
- Application/Usage
- Data Networking
- Media & Performance
- Media Type Supported
- Optical Fiber
- I/O Expansions
- Total Number of Expansion Slots
- 48
- Expansion Slot Type
- SFP (mini-GBIC)
- Physical Characteristics
- Height
- 1.2"
- Width
- 14.4"
- Depth
- 16"
- Miscellaneous
- Additional Information
- Primary Applications: High performance distribution, core layer and data center
- Mean time between failures (MTBF): seven years for system configuration
- Scheduler: Deficit Weighted Round Robin (DWRR)
- Buffer Size per Port: Rx-166KB, Tx-1.17MB
- Optional DFC Upgrade Support: Use WS-F6700-DFC3 with Supervisor Engine 720
- Backplane/Switch Fabric Connections
- This modules also offer a choice of packet buffer depths for traffic shaping, and QoS granularity with varying number of queues and drop threshold options
Performance/Forwarding Rate (Mpps):
- 720 Gbps using CEF; Up to 30 Mpps per system
- Using dCEF upgrade: up to 48 Mpps
- Compatibility
- Supervisor Engine 720
- Catalyst 6506, 6509, 6509-NEB-A, 6513 chassis
