- General Information
- Manufacturer
- Hanwha Group
- Manufacturer Website Address
- http://www.hanwha.com
- Brand Name
- Wisenet
- Product Type
- Video Surveillance Station

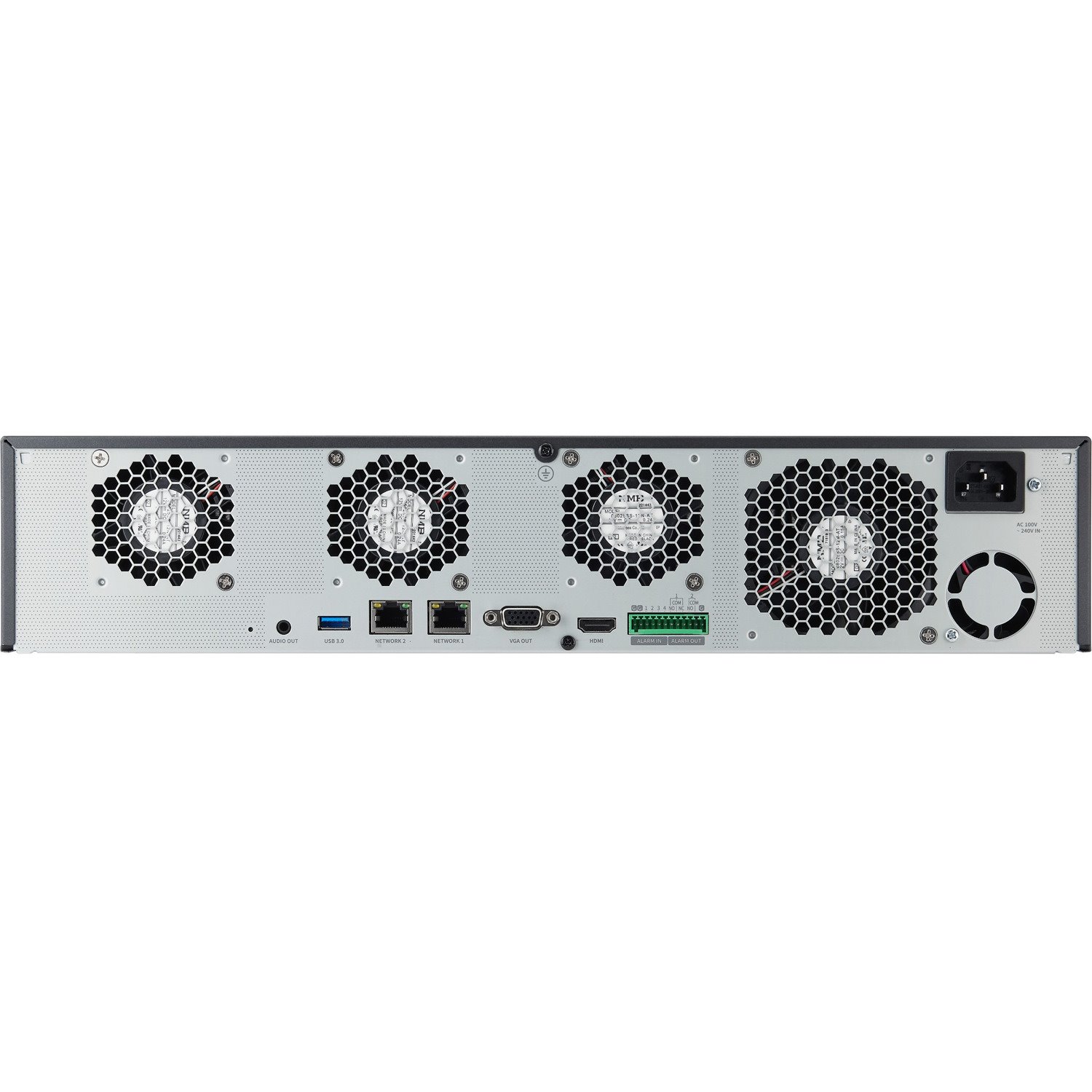

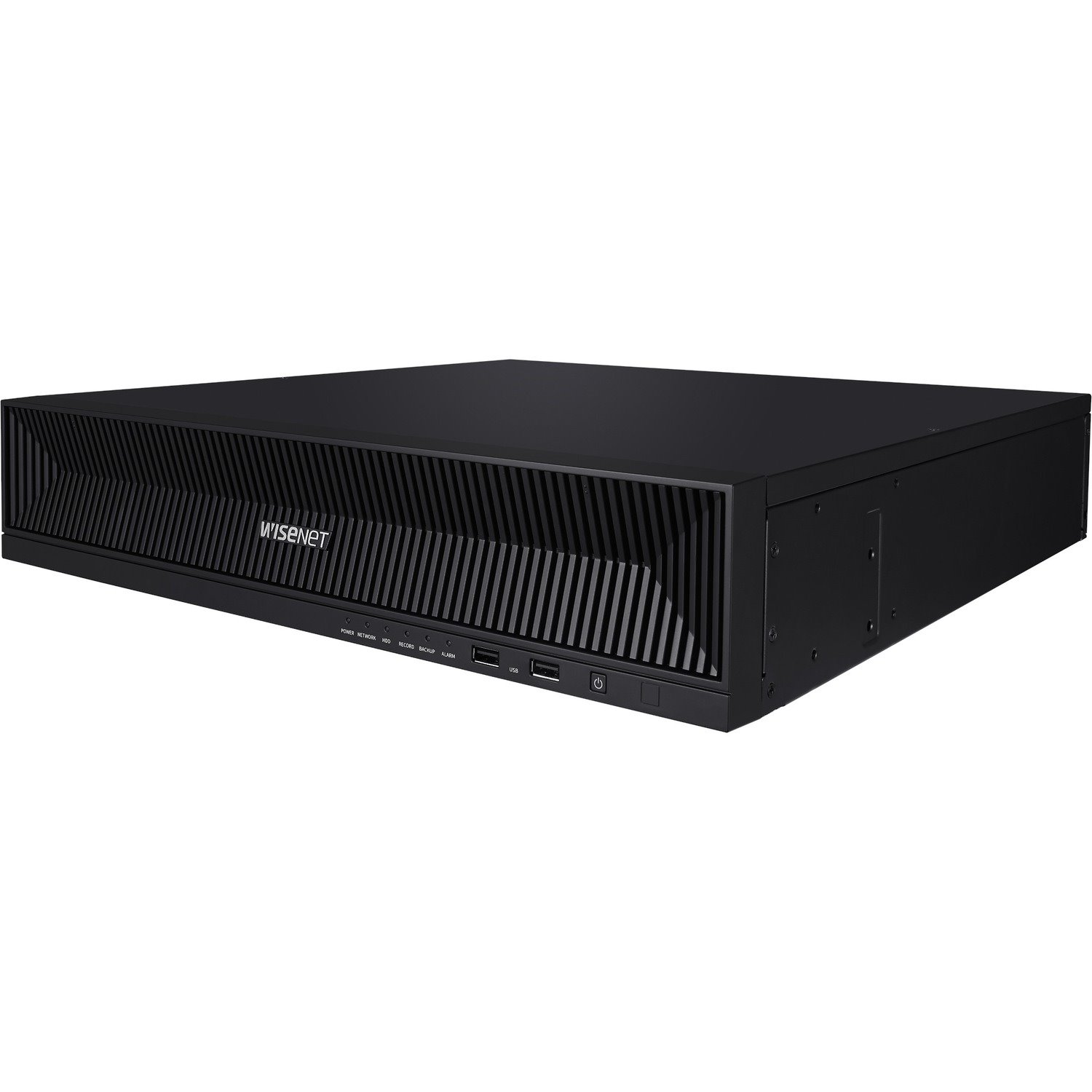

Hanwha's XRN-1620B2 is an 8K NVR (Intel-based), 16 channels, H265,H264, MJPEG compression support. Supports up to 8 fixed internal SATA HDDs (10TB max per HDD), ARB (Automatic Recovery Backup), 140 Mbps recording / up to 32 Mbps playback, Dual stream recording, WiseStream technology, HDMI/VGA dual display, maximum resolution of 32MP recording/display and fisheye dewarping on web and CMS, web UI 2.0 (plugin-free), AI search (Wisenet AI cameras only), QR Code for mobile app.
- Technical Information
- Total Number of Channels
- 16
- Connectivity Technology
- Wired
- Recording Formats
- 8K
- HD Recording
- Yes
- System Components
- Network Video Recorder
- Video
- Video Formats
- H.264
- H.265
- Motion JPEG
- Maximum Resolution
- 32MP
- Maximum Frame Rate
- 480 fps
- Network & Communication
- Ethernet
- Yes
- Remote Management
- Yes
- Interfaces/Ports
- USB
- Yes
- Total Number of Audio Out Ports
- 1
- Number of VGA Out
- 1
- HDMI
- Yes
- Power Description
- Power Consumption
- 130 W
- Physical Characteristics
- Height
- 3.5"
- Width
- 17.3"
- Depth
- 16.9"
- Weight (Approximate)
- 12.59 lb
