- General Information
- Manufacturer
- Hanwha Group
- Manufacturer Website Address
- http://www.hanwha.com
- Brand Name
- Wisenet
- Product Series
- P
- Product Type
- Network Camera

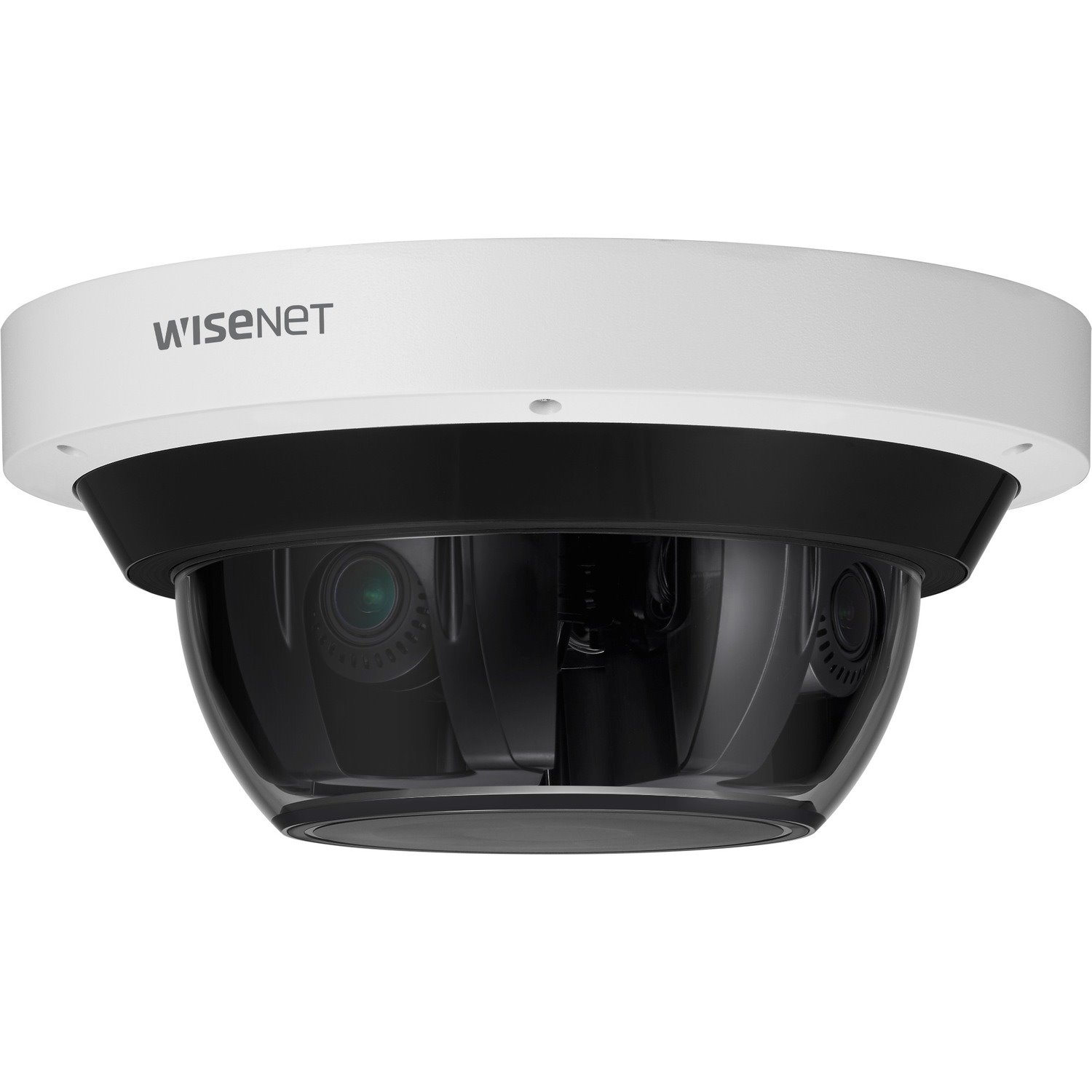

The PNM-9085RQZ Wisenet P series network vandal outdoor Multi-Sensor Multi-Directional dome camera provides 4x 5MP sensors for a total resolution of 20MP. Each camera head features 30fps, a motorized vari-focal lens 2.3x (4.13~9.4mm) (87.58°~37.34°), PTRZ (Pan/Tilt/Rotate/Zoom) remote adjustment, triple codec H.265/H.264/MJPEG with WiseStream II technology, 120dB WDR, defocus detection, built-in analytics, true D/N, 4x SD card slots, hallway view, HLC, defog detection, Bi-Directional Audio, Alarm I/O 1/1, HPoE (injector included), IP66/IK10, -40°C ~ +55°C (-40°F ~ +131°F), White camera body.
- Technical Information
- HD Recording
- Yes
- Night Vision
- Yes
- Night Vision Distance
- 98.43 ft
- Night Vision Type
- Infrared
- Display & Graphics
- Image Sensor Type
- CMOS
- Color Supported
- Color
- Monochrome
- Field of View
- H: 87.58°(Wide)~37.34°(Tele) / V: 64.58°(Wide)~28.04°(Tele) / D: 112.46°(Wide)~46.85°(Tele)
- Effective Camera Resolution
- 20 Megapixel
- Video
- Video Formats
- MJPEG
- H.264
- H.265
- Maximum Video Resolution
- 2560 x 1920
- Maximum Frame Rate
- 30 fps
- Lens
- Lens Type
- Zoom
- Minimum Focal Length
- 4.13 mm
- Maximum Focal Length
- 9.40 mm
- Lens Included
- Yes
- Minimum Aperture
- f/2.67
- Maximum Aperture
- f/1.92
- Optical Zoom
- 2.3x
- Exposure
- Shortest Shutter Speed
- 1/12000 Second
- Longest Shutter Speed
- 2 Second
- Network & Communication
- Connectivity Technology
- Wired
- Remote Management
- Yes
- Storage
- Storage Type
- Memory Card
- Interfaces/Ports
- Network (RJ-45)
- Yes
- Power Description
- Input Voltage
- 12 V DC
- Power Source Type
- DC
- Physical Characteristics
- Mount Type
- Corner Mount
- Pendant Mount
- Parapet Mount
- Pole Mount
- Wall Mount
- Gooseneck
- Hanging Mount
- Gang Box Mount
- Box Mount
- Form Factor
- Dome
- Color Family
- White
- Product Color
- Signal White
- Height
- 5.7"
- Diameter
- 12.4"
- Weight (Approximate)
- 11.46 lb
- Environmental Conditions
- Minimum Operating Temperature
- -40°F (-40°C)
- Maximum Operating Temperature
- 131°F (55°C)
- Maximum Operating Humidity
- 90%
- Miscellaneous
- Features
- SD Card Local Storage
- Day/Night
- Wide Dynamic Range
- Privacy Masking
- Motion Detection
- Alarm Triggering
- Gain Control
- Automatic White Balance
- Indoor/Outdoor
- Outdoor
- Impact Protection Rating
- IK10
- Ingress Protection Rating
- IP66
