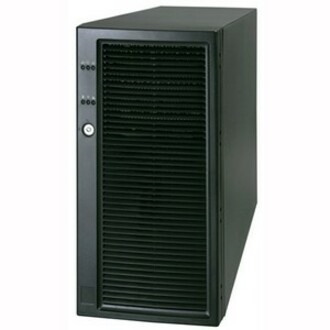

The Intel Server Chassis SC5600 delivers the versatility to support applications ranging from work group database servers to departmental exchange servers. With hot-swap drive bays, hot-swap redundant power supplies, and up to 10 SAS or SATA drive options, the SC5600 is an enterprise-level chassis designed for world-class performance and expandability.
- General Information
- Manufacturer
- Intel Corporation
- Manufacturer Website Address
- http://www.intel.com
- Brand Name
- Intel
- Product Type
- Server Case
- Technical Information
- Motherboard Supported
- SSI EEB
- Number of Fans Supported
- 3
- Number of Fans Installed
- 3
- Bays
- Number of External 5.25" Bays
- 3
- Number of Internal 3.5" Bays
- 10
- Number of Total Expansion Bays
- 13
- I/O Expansions
- Total Number of Expansion Slots
- 7
- Interfaces/Ports
- Total Number of USB Ports
- 2
- Front USB
- Yes
- Power Description
- Number of Power Supplies Supported
- 2
- Number of Power Supplies Installed
- 2
- Power Supply Wattage
- 750 W
- Redundant Power Supply
- Yes
- Physical Characteristics
- Color Family
- Black
- Product Color
- Black
- Form Factor
- Tower
- Height
- 17"
- Width
- 8.6"
- Depth
- 28.4"
- Weight (Approximate)
- 79.80 lb
- Miscellaneous
- Additional Information
Supported Motherbards: S5520HC S5500HCV
