- General Information
- Manufacturer
- Peerless Industries, Inc
- Manufacturer Website Address
- http://www.peerless-av.com
- Brand Name
- Peerless-AV®
- Product Line
- SmartMount®
- Packaged Quantity
- 1 Unit
- Product Type
- Wall Mount

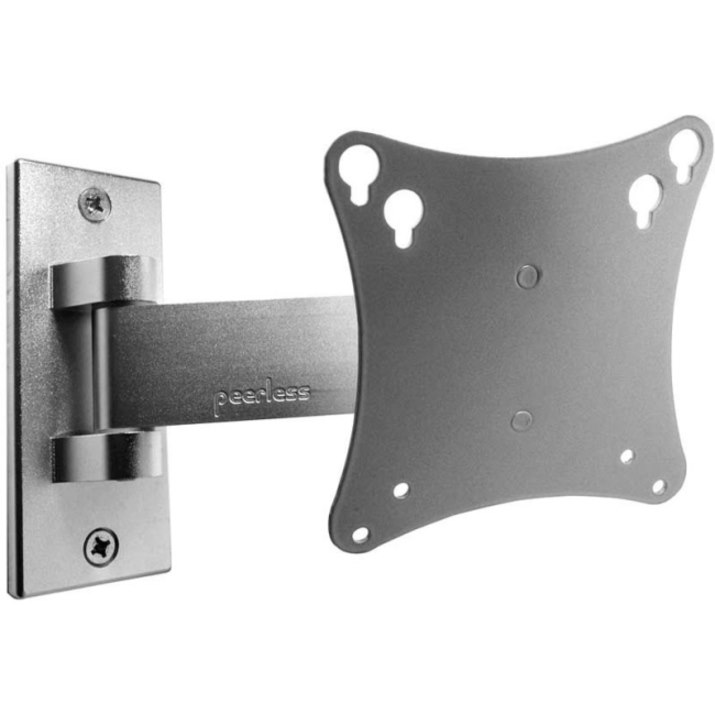

The SmartMount® Pivoting Wall Mount series offers the most versatile installation features and mounting options. With SP730P, extend the display up to 9.88" (251mm) or fully-retract it to just 2.77" (7mm) from the wall for an improved viewing angle. The display can now simply be installed by a single person with the Hook-and-Hang™ system. One-Touch™ tilt technology offers ±35° vertical tilt movement for the ideal viewing angle. Integrated cable management protects, contains and conceals cables for a clean installation.
- Warranty
- Limited Warranty
- 5 Year
- Product Information
- Device Supported
- Flat Panel Display
- Maximum Load Capacity
- 25 lb
- Minimum Screen Size Supported
- 10"
- Maximum Screen Size Supported
- 29"
- Features
- Hook-and-Hang Design
- Tilt
- Vertical Tilt
- Cable Management
- Pivot
- 90° Swivel
- Roll Adjustment
- Extendable
- Flexible
- Leveling System
- Durability
- Scratch Resistant
- Physical Characteristics
- Color Family
- Black
- Product Color
- Black
- Finishing
- High Gloss
- Fused Epoxy
- VESA Mount Compatible
- Yes
- Mounting Pattern
- 75 x 75
- 100 x 100
- Product Material
- Anodized Aluminum
- Height
- 4.33"
- Width
- 4.33"
- Depth
- 8.07"
- Weight (Approximate)
- 2.45 lb
- Miscellaneous
- Package Contents
- 1 x SmartMount Long Pivot Wall Mount
- 1 x Adapter Plate
- 2 x Cord Management Clip
- 1 x 4 mm Allen Wrench
- 1 x 3/16" Allen Wrench
- 2 x #14 x 2-1/2" Flat Head Wood Screw
- 2 x Alligator Anchor
- 4 x M5 x 10 mm Self Tapping Screw
- 4 x M4 x 0.7 x 20 mm Phillips Screw
- 4 x M4 x 0.7 x 12 mm Phillips Screw
- 4 x Retaining Spacer
- Application/Usage
- Wall
- Additional Information
- Pre-assembled for fast and easy installation
- Mounts to single wood stud, concrete, cinder block or metal stud (with accessory metal stud wall plate)
- Arm extends up to 6" from wall or folds flat to save space
- Provides full side-to-side pivot at the wall plate
- Features ball joint at the screen for additional side-to-side swivel and upward/downward tilt
- Includes hardware for installation to a single wood stud or concrete
- UL tested to four times stated weight load
- Compatibility
- SmartMount Pivoting Wall Mount for 10" to 29" Displays
- 10" to 22" LCD Screens
- Screens with VESA 75 or 100 Mounting Holes
- Certifications & Standards
- RoHS, TAA, VESA, UL
- Country of Origin
- Taiwan
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
