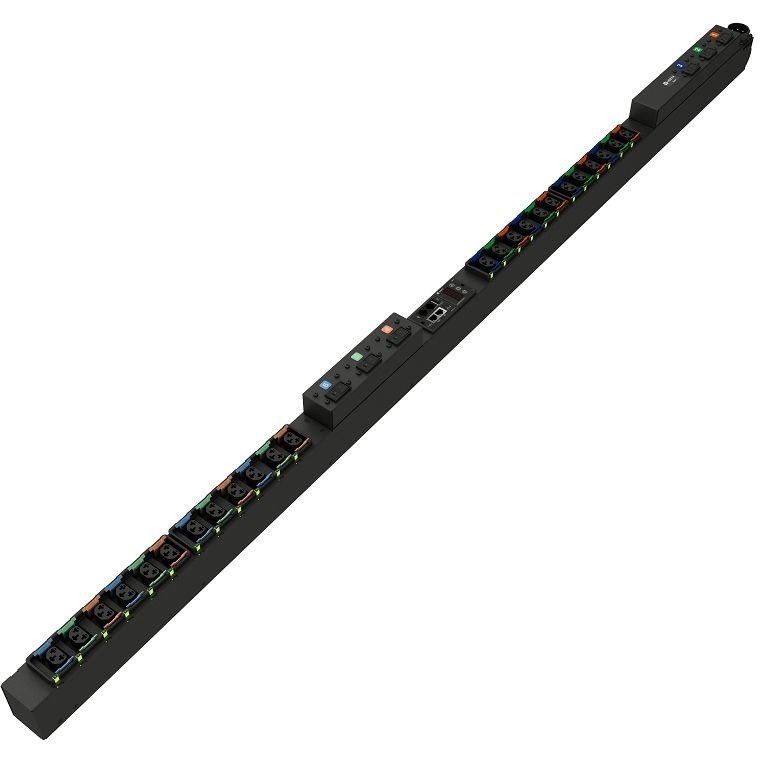

The Vertiv Geist Switched Outlet Level Monitored Rack Power Distribution Unit VP7UV002 is a varible power configurable 0U vertical rack power distribution unit (PDU) with input power monitoring, and outlet level switching. The VP7UV002 has 24 Combination C13/C19 outlets and a universal inlet providing 22.0kW in power capacity. This Switched rPDU allows you to turn off receptacles to avoid accidental overloads and power cycle equipment remotely to reboot unresponsive critical IT equipment. The hot-swappable Interchangeable Monitoring Device (IMD) displays current on the local LED display. The IMD includes ports for serial communication and environmental monitoring, and dual ethernet ports. Simplify management of multiple PDUs with fault-tolerant daisy chaining or IP aggregation capabilities. This Vertiv Geist Switched PDU is UL listed, meeting an important requirement for data centers, and each unit undergoes individual testing for functionality to ensure your network is powered by a reliable power distribution unit.
- General Information
- Manufacturer
- Vertiv
- Manufacturer Website Address
- http://www.vertiv.com/
- Brand Name
- Vertiv Geist
- Product Series
- G
- Product Type
- PDU
- Warranty
- Limited Warranty
- 5 Year
- Technical Information
- PDU Type
- Switched Outlet Monitored
- Phase
- Single Phase/Three Phase
- Plug/Connector Type
- Universal Input
- Plug/Connector Detail
- 1 x Universal Input
- Receptacle Type
- Combination C13/C19
- Receptacle Detail
- 24 x Combination C13/C19
- Protection Type
- Overcurrent Protection
- Overload Protection
- Power Description
- Input Voltage
- 230 V AC
- 415 V AC
- Power Rating (Watt)
- 22 kW
- Input Current
- 63 A
- Management
- Management
- DHCP
- HTTP
- HTTPS
- IPv4
- IPv6
- LDAP
- NTP
- RADIUS
- RSTP
- SSH
- SMTP
- SNMP (v1/v2c/v3)
- Syslog
- TACACS+
- Remote Outlet Switching
- Yes
- Interfaces/Ports
- Serial Port
- Yes
- Modem (RJ-11)
- No
- Modem (RJ-12)
- Yes
- Modem (RJ-22)
- No
- Network (RJ-45)
- Yes
- USB
- Yes
- Physical Characteristics
- Mounting Orientation
- Vertical
- Mount Type
- Rack-mountable
- Form Factor
- Hot-swappable
- Rack Height
- 0U
- Width
- 2"
- Depth
- 2.6"
- Length
- 72"
- Miscellaneous
- Certifications & Standards
UL Listed
- Country of Origin
- United States
- TAA Compliant
- Yes
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
