- General Information
- Manufacturer
- Zebra Technologies Corporation
- Manufacturer Website Address
- http://www.zebra.com
- Brand Name
- Zebra
- Product Series
- Xi4
- Product Type
- Direct Thermal/Thermal Transfer Printer

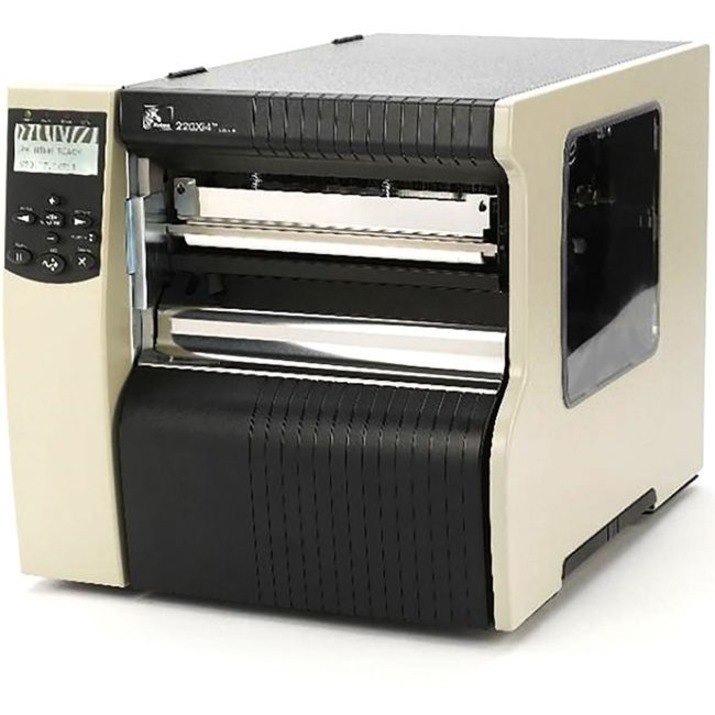

Built for high-volume applications and harsh environments, Zebra's Xi Series label printers deliver superior print quality and reliability. Boost productivity with faster print and connection speeds, and reduce downtime with early warning.
- Technical Information
- Recommended Use
- Label Print
- Print Color Capability
- Monochrome
- Maximum Mono Print Speed
- 6 in/s
- Maximum Print Resolution (dpi)
- 300
- Maximum Print Width
- 8.50"
- Barcode Symbology Supported
- Codabar
- Code 11
- Code 128
- Code 128-A
- Code 128-B
- Code 128-C
- Code 128 UCC
- Code 39
- Code 93
- EAN-13
- EAN-8
- ISBT-128
- Industrial 2 of 5
- Interleaved 2 of 5
- LOGMARS
- MSI
- Planet Code
- Plessey
- POSTNET
- Standard 2 of 5
- UPC 2 or 5 Digit Extension
- EAN With 2 or 5 Digit Extension
- UPC-A
- UPC-E
- Aztec Code
- Codablock
- Code 49
- Data Matrix
- Maxi Code
- Micro PDF
- PDF-417
- QR Code
- RSS
- GS1 DataBar
- TLC 39
- Features
- LCD Display
- Print Technology
- Direct Thermal /Thermal Transfer
- Memory
- Standard Memory
- 16 MB
- Memory Technology
- SDRAM
- Flash Memory
- 8 MB
- Interfaces/Ports
- Parallel Port
- Yes
- Serial Port
- Yes
- USB
- Yes
- Network & Communication
- Ethernet
- Yes
- Ethernet Technology
- Fast Ethernet
- Media Types & Handling
- Media Type
- Continuous Form
- Black Mark
- Roll Fed
- Die-cut Label
- Fanfold
- Media Sensor
- Transmissive Media Sensor
- Reflective Media Sensor
- Media Thickness
- 12 mil
- Maximum Roll Diameter
- 3.20"
- Maximum Label Width
- 8.80"
- Maximum Label Length
- 12.50 ft
- Label Core Size
- 1"
- Ribbon Core Size
- 1"
- Fonts & Emulation
- Language Emulation
- ZPL
- ZPL II
- XML
- Power Description
- Input Voltage
- 110 V AC
- 220 V AC
- Physical Characteristics
- Height
- 15.5"
- Width
- 15.8"
- Depth
- 20.4"
- Miscellaneous
- Power Cable Localization
- UK
- Cables Included
- AC
- Additional Information
- Unicode Compliant
- Intelligent printhead
- Auto calibration
- Clear Bi-fold Media Side Door
- Construction: 12-gauge steel frame
- Single 32 bit 133 Mhz RISC processor
- Automatic media/ribbon sensing capability
- Multi-level Element Energy Equalizer (E3) for superior print quality
- Mirror feature allows user-defined printer configurations to be retrieved from the network
- Platform Supported
- PC
